| Place of Origin: | China |
|---|---|
| Brand Name: | BXT |
| Model Number: | BXT-MTB-097 |
| Minimum Order Quantity: | 1pcs |
| Payment Terms: | D/A, D/P, T/T, L/C |
| Type: | Full Suspension Carbon Frame 29er | Material: | T1000 Carbon Fiber |
|---|---|---|---|
| Frame Travel: | 100mm | Fit For Rear Shock: | Length 165mm,Bushing 22mm |
| Fit For Seat Clamp: | 34.9mm | Fit For Seat Post: | 31.6mm |
| Fit For Disc Brake: | 160mm | Fit For Bottom Bracket: | BSA(73mm) |
| Fit For Rear Wheel Hub: | 135x9mm And 142x12mm Or Boost 148x12mm | Fit For Headset: | Tapered,Top 1-1/8(41.8mm) Down 1-1/2(52mm) |
| Fit For Tire: | 29er.Max 2.25inch Tire,BOOST Specification Max Use 2.35inch Tire | ||
| High Light: | XC Carbon Fatbike Frame,Thru Axle Carbon Fatbike Frame,29er Full Suspension Fatbike Frame |
||

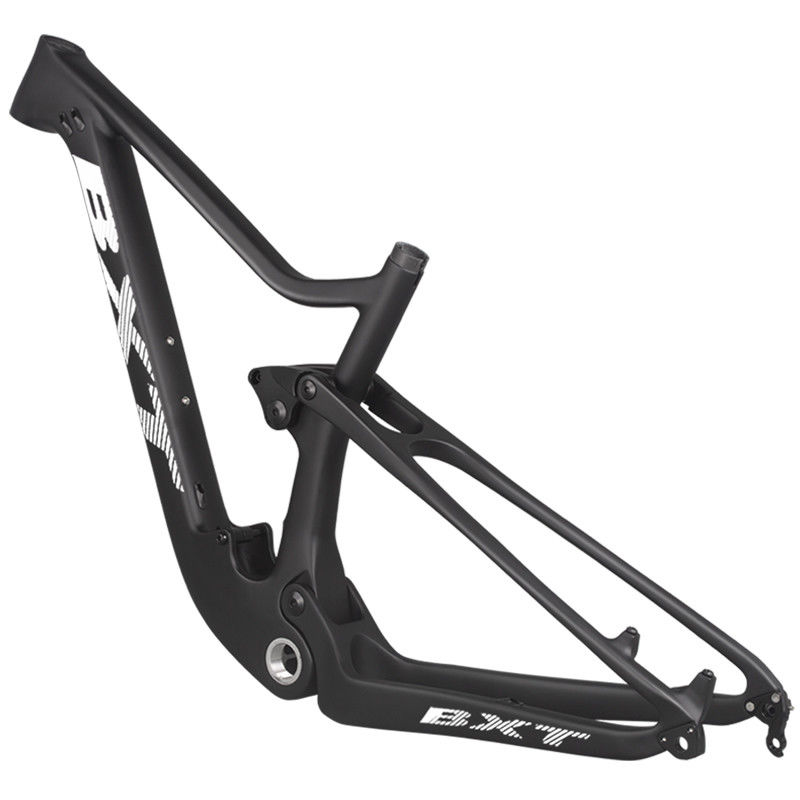

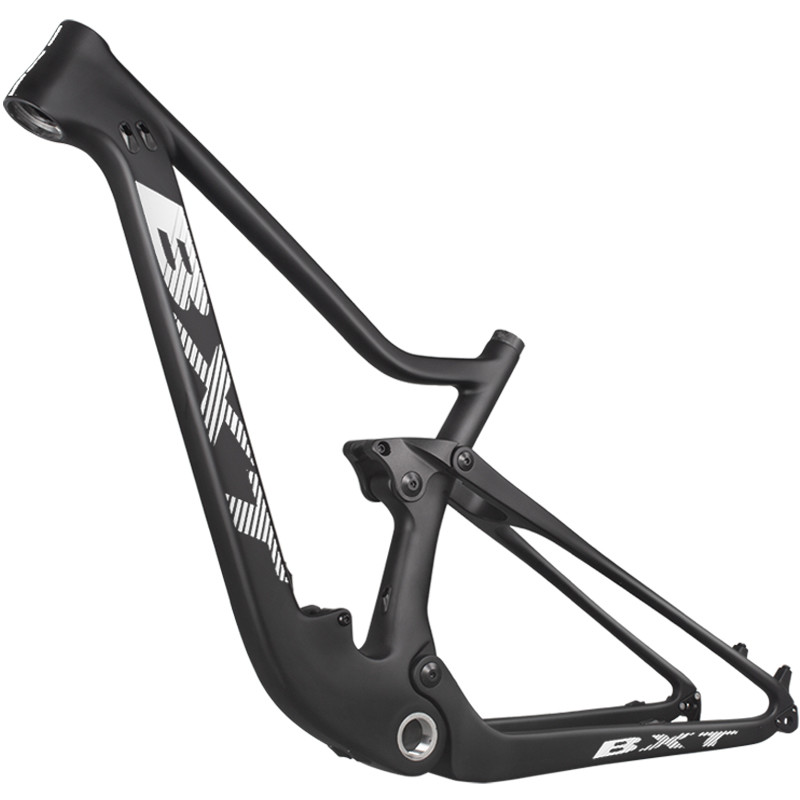

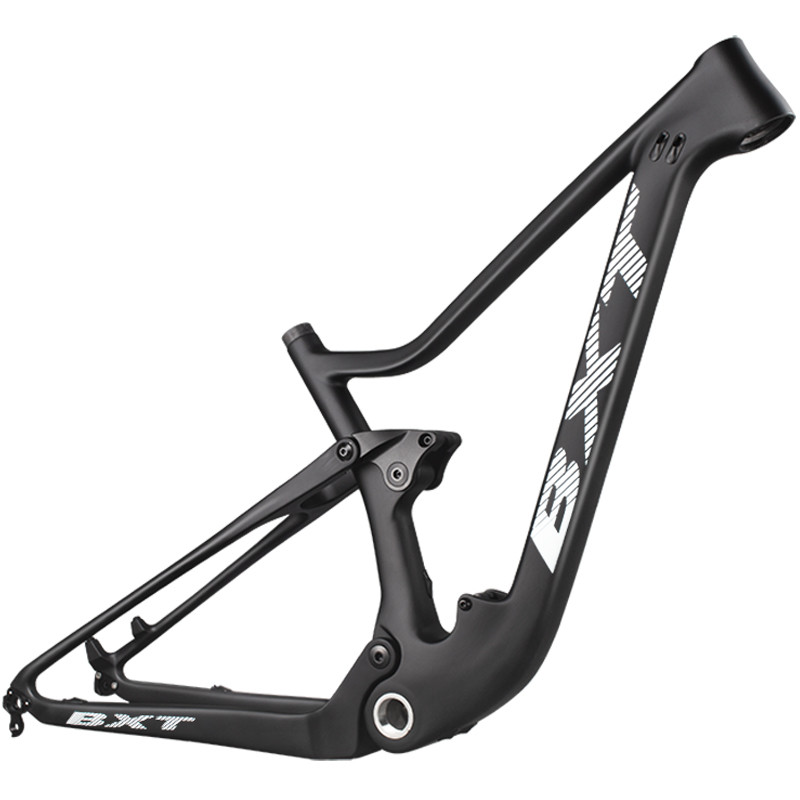

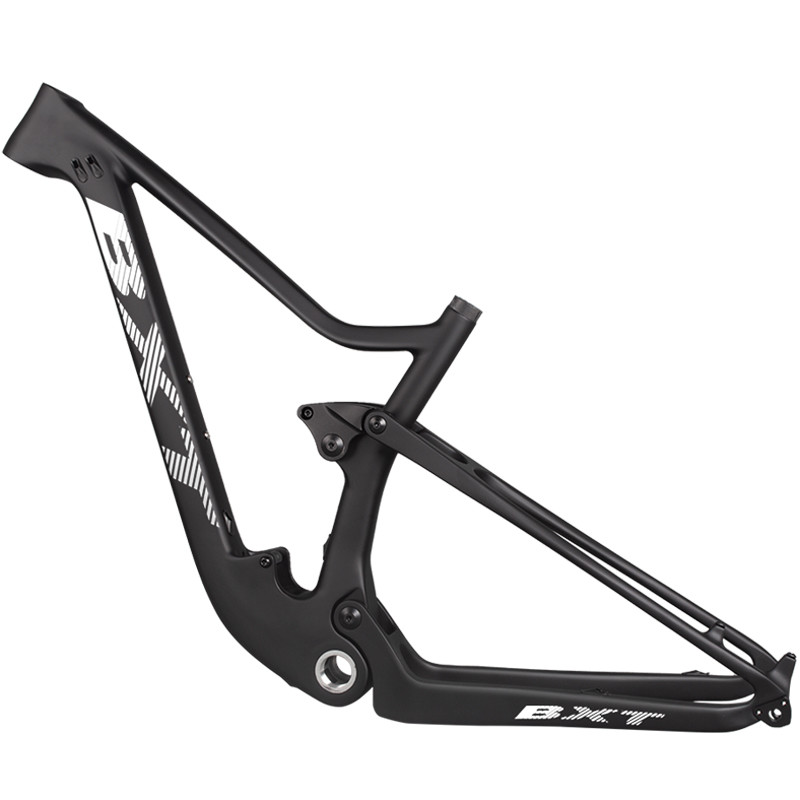

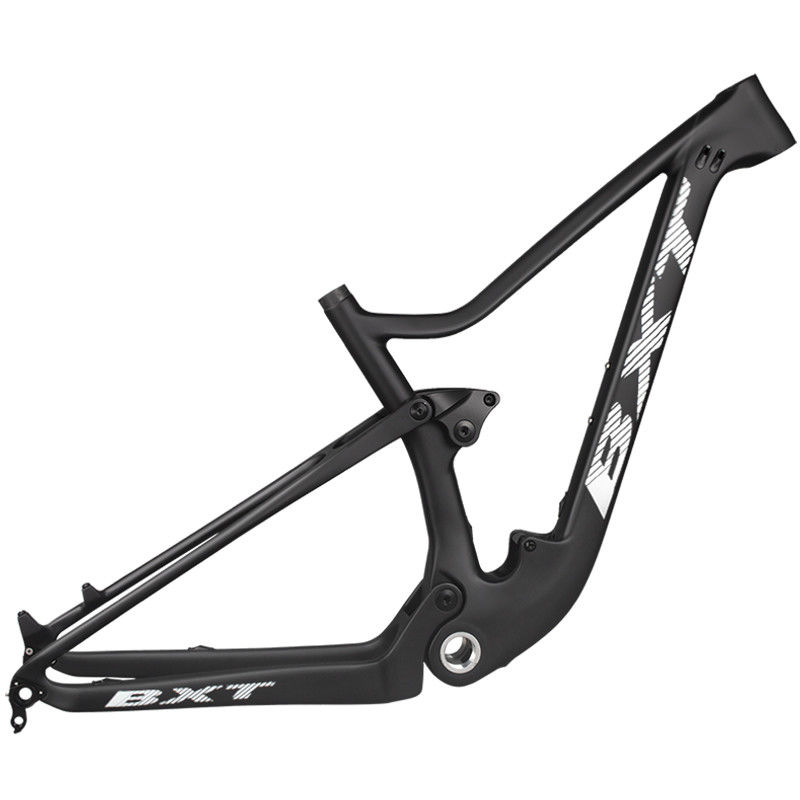

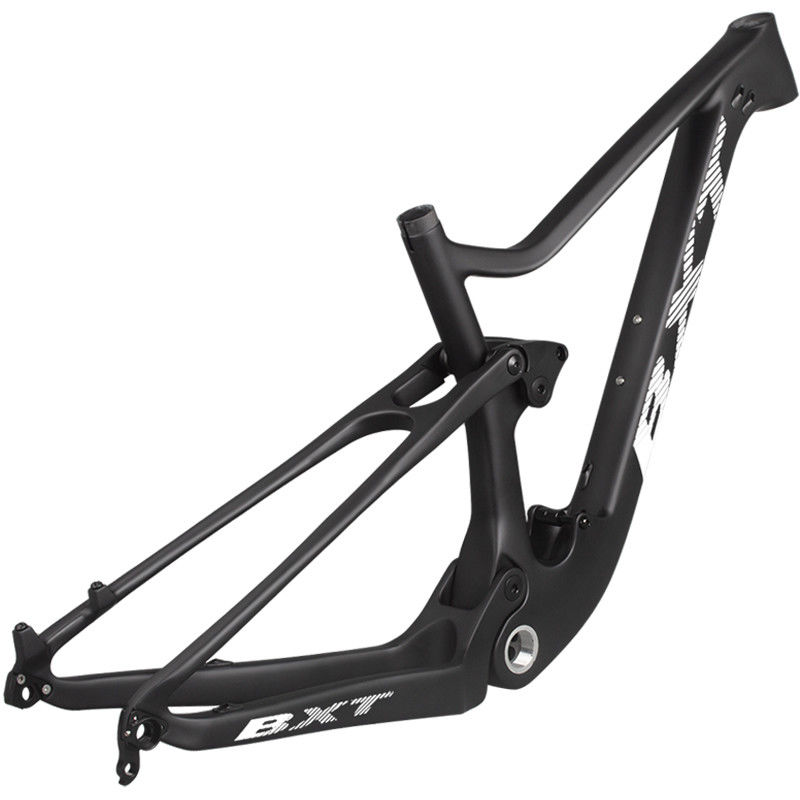

Carbon Fiber FullSuspension Frame 29er
XC MTB carbon fiber T1000 full suspension frame. 100mm frame travel. Compatible with 142x12mm,135x9mm or BOOST 148x12mm rear wheel specifications. Can use tires up to 2.35 inches wide. Available in S",M",L",XL" sizes.
Full suspension bike has better shock absorption,adapt to more terrains,giving you a more comfortable ride on rough roads and provide a durable riding experience.In addition,Soft tail ensures that the tires are fully gripped to maintain control on descents.
Production Information
| Model No. | BXT-MTB-097 | |
| Frame Type | Full Suspension Carbon MTB Frame 29er | |
| Material | T1000 Carbon Fiber | |
| Frame Travel | 100mm | |
| Cable Running | Frame Internal | |
| Components Compatible Size |
Headset | Tapered;Top 1-1/8 Down 1-1/2 |
| SeatPost | 31.6mm | |
| Seat Clamp | 34.9mm | |
| Bottom Bracket | Screw-in BSA(73mm) | |
| Suspension Fork | Travel: 80-100mm | |
| Rear Shox | 165mm;Bushing for 22mm | |
| Brake Systerm | Disc Brake 160mm | |
| Tire | 29er,Max 2.3Tire | |
| HUB/R | Thru 135*9mm/142*12mm/148*12mm | |
To Buyers
Welcome to BXT Carbon bike factory!
We are manufacturer and have been on this line for 10 years.
Our main products has Complete Carbon Mountain Bike, Carbon Mountain Frame,Carbon Suspension Mountain Bike,Carbon Road Frameset,Carbon E Bike Frames, Other Bicycle parts ect.
We have Advantages below:
1. OEM&ODM manufacturing welcomed and professional!
2. Sample order is available and Delivery Quickly!
3. We will reply you for your inquiry in 24 hours!
FAQ
------------------------------------------------------------------------------
Q: What’s your payment clause?
A: We accept T/T,Western Union and Paypal,and 30% should be paid in advance,the rest be paid before shipping.
Q: I am interest in the carbon fiber bike frame,but I konw nothing about it?
A: Just contact us and we will let you know everything about carbon fiber bike frame
Q: How long I can get the goods?
A: It's depend on how many product you purchase and way of shipment, we will reply you after receiving inquiry.
